維修奧地利JAKO波登管壓力表

奧地利JAKO波登管壓力表/雙金屬溫度計/溫度表 ：JAKO一直的壓力和溫度計量領域的**生產商之一，60歲及儀器儀表制造商，在奧地利和國外客戶信賴的合作伙伴（目前，我們的產品和服務，提供超過30個國家）。我們的生產仍然是基于今天在維也納奧地利制造和測量設備。
JAKO的客戶包括經銷批發合作伙伴以及企業銷售安裝加熱，通風，空調和制冷系統，設備工程公司，以及在這個過程中，重工業的儀器和設備制造商，例如在行業集裝箱建筑，壓縮機工程，鍋爐工程，組件工程。
壓力和溫度是*常見的物理計量單位在許多應用領域的經營和生產過程控制和成本效益的措施和關鍵參數。PINTER壓力變送器

JAKO主要產品及型號：

JAKO壓力表：

• 標準型波登管壓力表
• 工業型波登管壓力表
• 高精密壓力表
• 隔膜壓力表
• 膠囊壓力表
• **壓力表
• 差壓計
• 壓力表與變送器
• 電子壓力計量
• 附件和安裝部件

JAKO壓力表部分產品型號：
Fig. 1 Compact pressure gauges
for stand-alone process connectionNS 40; NS 50; NS 63
based on EN 837-1

Fig. 101 Compact pressure gauges
with 3-hole front flange for easy flush mountingNS 40; NS 50; NS 63
based on EN 837-1

Fig. 102 Compact pressure gauges
with rectangular front ring and bracket attachment on the back for flush mountingNS 40; NS 50; NS 63
based on EN 837-1
All-purpose pressure gauges
JAKO all-purpose pressure gauges are cost-effective solutions for a wide range of applications in the sanitary, heating and venitlation engineering as well as in the apparatus and equipment engineering sectors.

Fig. 2 All-purpose pressure gauges
for stand-alone process connectionNS 80; NS 100; NS 160
based on EN 837-1

Fig. 201 All-purpose pressure gauges
with 3-hole front flange for easy flush mountingNS 80; NS 100
based on EN 837-1

Fig. 203 All-purpose pressure gauges
with attachment rim on the back for attachment and surface mountingNS 80; NS 100
based on EN 837-1
Heating pressure gauges
JAKO heating pressure gauges are used for pressure and content monitoring in closed loop heating systems. A green reading range (green banner) on the dial indicates the operating pressure, a red mark the maximum admissible valueand a set value pointer that can be adjusted from the outside shows the required operating pressure.

Fig. 5 Heating pressure gauges
with special scale for content measurement in closed loop heating systemsNS 63; NS 80
based on EN 837-1
Hydrometers
JAKO hydrometers indicate the measured pressure on a twin scale in bar and in mWs.

Fig. 6 Hydrometers
with twin scale for direct reading in meter water column (MWC) and in barNS 80; NS 100
based on EN 837-1
Combined pressure and temperature gauges
JAKO combined pressure and temperature gauges save space and money and are designed for the simultaneous measurement of pressure and temperature at a single point of measurement without high measurement accuracy requirements.

Fig. 80 Combined pressure and temperature gauges
for the combined pressure and temperature measurement, center back mountNS 80

Fig. 81 Combined pressure and temperature gauges
for the combined pressure and temperature measurement, center back mountNS 80
Glycerine filled pressure gagues
JAKO gylcerine filled pressure gauges ensure good pointer readibility and a longer life cycle also at measuring points with mechanical vibrations and pulsating pressure loads.

Fig. 130 Glycerine filled pressure gagues
for stand-alone process connectionNS 40; NS 50; NS 63; NS 100
based on EN 837-1

Fig. 137 Glycerine filled pressure gagues
with 3-hole front flange for easy flush mountingNS 40; NS 50; NS 63; NS 100
based on EN 837-1

Fig. 136 Glycerine filled pressure gagues

JAKO溫度計：

• 標準型雙金屬溫度計
• 工業型雙金屬溫度計
• 精密溫度計

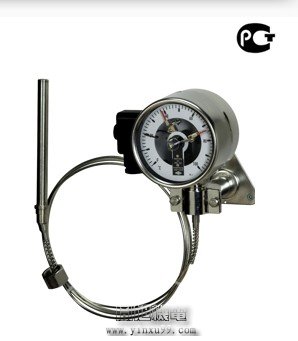

• 遠程讀取溫度計
• 玻璃溫度計
• 溫度計與變送器
• 電子溫度計量
• 附件和安裝部件

JAKO溫度計部分產品型號：

JAKO all-purpose thermometers are specially designed for the wide application field in the heating, ventilation, air conditioning and sanitary engineering sector.

Fig. 20 All-purpose thermometers
with measuring stem, center back mountbased on EN 13190
NS 63; NS 80; NS 100; NS 160

Fig. 21 All-purpose thermometers
with measuring stem, lower mountbased on EN 13190
NS 80; NS 100; NS 160
All-purpose stainless steel thermometers
JAKO all-purpose stainless steel thermometers have a stainless steel housing and, therefore, are particularly suitable for the use in ambient conditions with high air humidity as well as in areas with condensate formation.

Fig. 200 All-purpose stainless steel thermometers
with measuring stem, center back mountbased on EN 13190
NS 50; NS 80; NS 100; NS 160
Air duct thermometers
JAKO air duct thermometers have a mounting rim on the back or a movable spacer flange and, therefore, allow simple and fast mounting on air ducts.

Fig. 205 Air duct thermometers
with mounting rim at the backbased on EN 13190
NS 63; NS 80; NS 100

Fig. 206 Air duct thermometers
with movable spacer flangebased on EN 13190
NS 63; NS 80; NS 100
Clip-on-pipe thermometers
JAKO clip-on-pipe thermometers allow easy installation on pipes for pipe temperature measurement.

Fig. 26 Clip-on-pipe thermometers
with tension spring for pipe mountingNS 63; NS 80
Flue gas thermometers
JAKO flue gas thermometers are used for the measurement of exhaust temperatures and are ready made for simple and quick installation with different mounting options.

Fig. 25 Flue gas thermometers
